NenoVision
-
Technology
-
SEM integration

LiteScope integration into SEM

LiteScope is designed for fast & easy integration to SEMs from different manufacturers in the "Plug & Play" mode. We provide appropriate adapters and feed-throughs that can be customized to client requirements.


The installation is very simple and can be done easily by any SEM user. First, LiteScope is attached by four screws to the adaptation plate, mounted on the SEM sample stage. The electrical cables are plugged into prepared vacuum feedthrough. In total, the whole process of mounting and potential dismounting of the device takes just a few minutes.


LiteScope is connected via its control unit to the same PC that is used to control the SEM. This compact setup enables to perform the correlative AFM-in-SEM measurements at one place, using the NenoView software.

See LiteScope setup
Play video

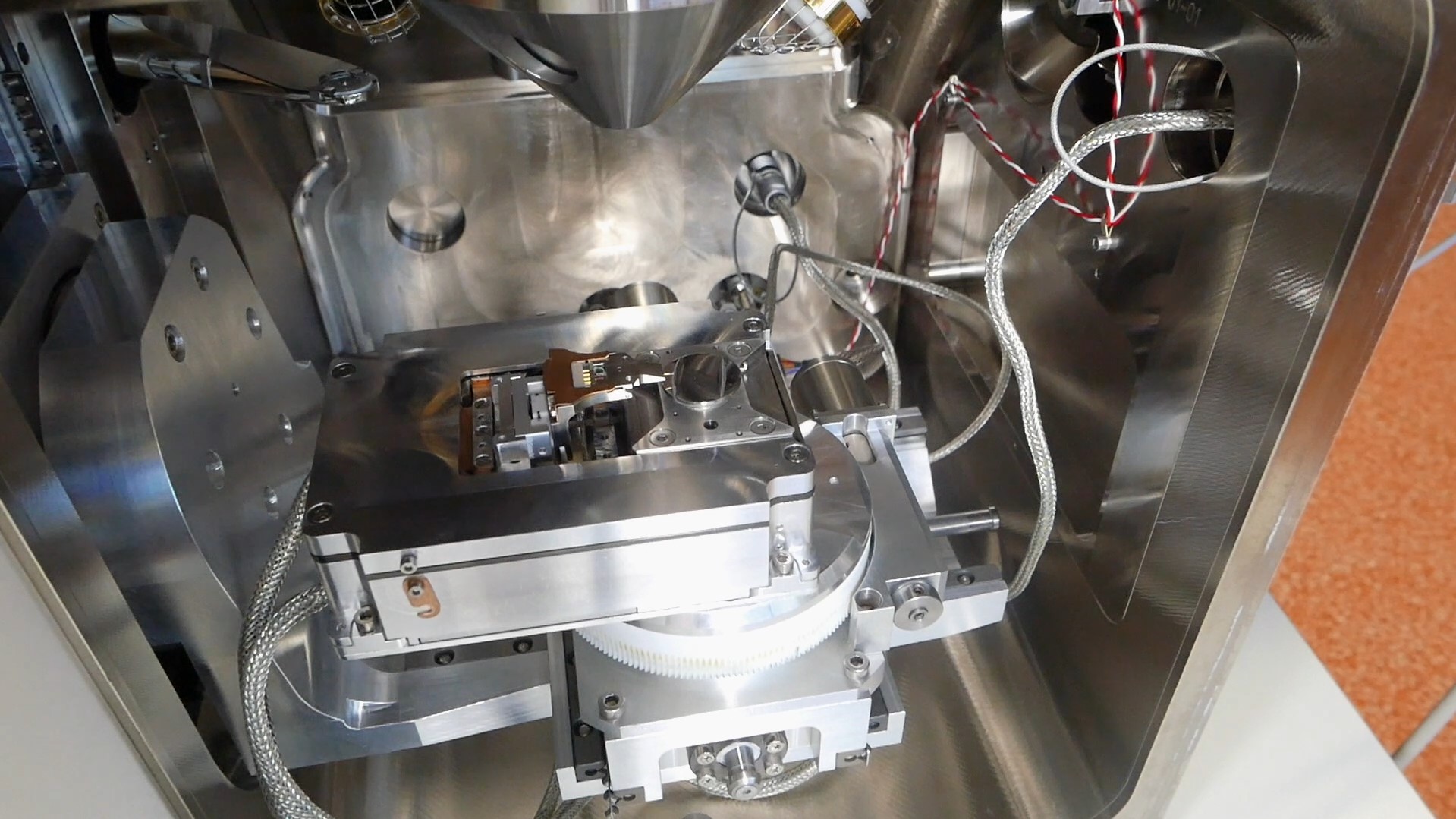

LiteScope AFM-in-SEM integration and installation video

SEM compatibility

Thanks to its unique design, LiteScope is compatible with most existing SEMs produced by Hitachi, Jeol, TESCAN, Thermo Fisher Scientific, and ZEISS.

LiteScope AFM-in-SEM integration and installation 1
LiteScope AFM-in-SEM integration and installation 2
LiteScope AFM-in-SEM integration and installation 3
LiteScope AFM-in-SEM integration and installation 4
LiteScope AFM-in-SEM integration and installation 5

See also

LiteScope AFM-in-SEM
LiteScope AFM-in-SEM
CPEM
CPEM
Benefits
LiteScope AFM-in-SEM benefits
Applications
LiteScope AFM-in-SEM applications
